Stainless Steel Cranked Pull Handles

Name: Stainless Steel Cranked Pull Handles
Brand: Frelan Hardware
SKU: JSS519
Availability: InStock

Price range: £26.92 through £67.08

KEY FEATURES

Material Grade: 304 Stainless Steel
Finish: Satin Stainless Steel
Fixing: M8 Bolt Through
Fire Rating: FD30/60
Corrosion Grade: 4
Use: Internal / External
Suitable Door Thickness: 35–54mm

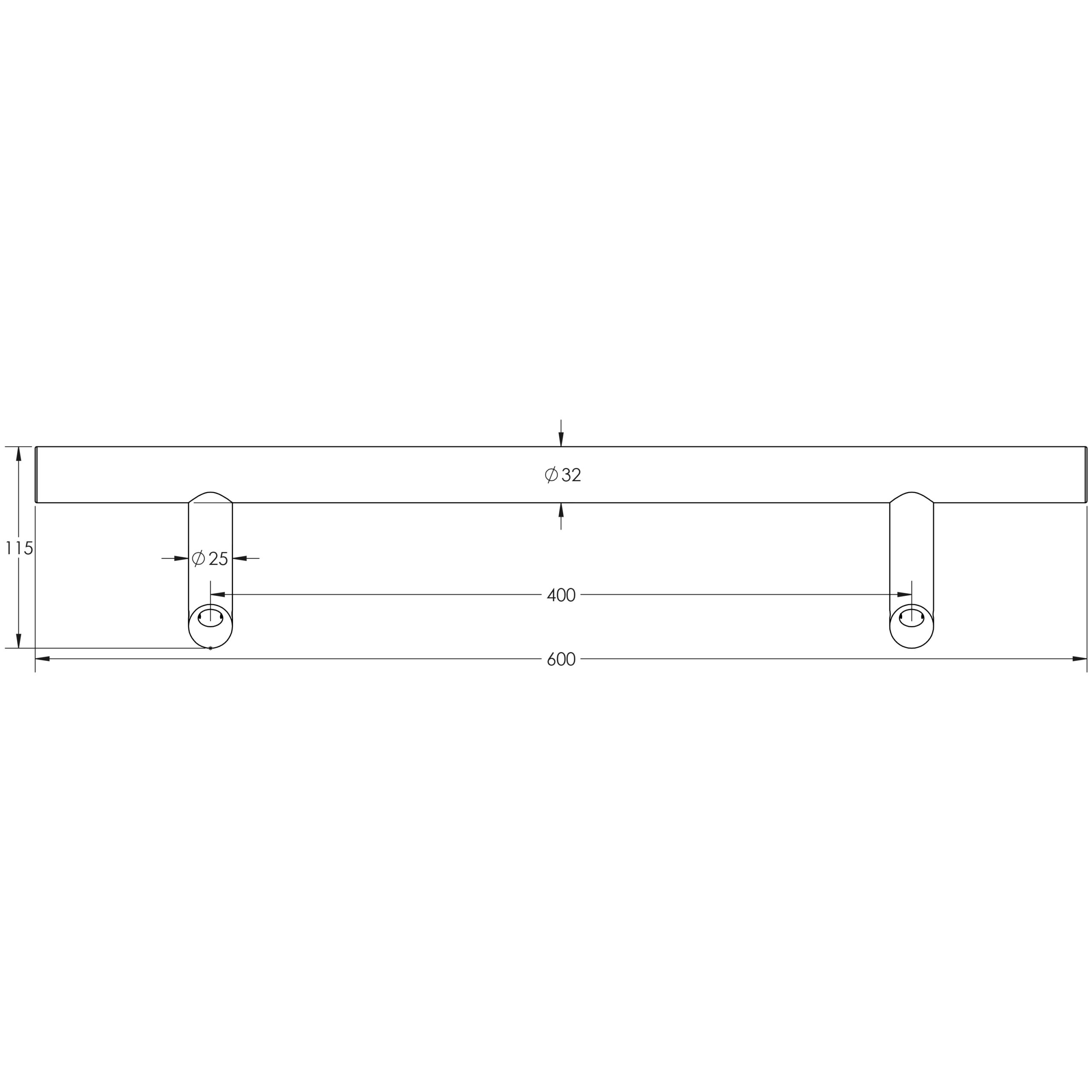

DIMENSIONS

Diameter: Ø32mm
Pillar Diameter: Ø25mm
Centres: 400mm
Length: 600mm
Projection: 115mm

Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.

Size

Clear

SKU: JSS519 Category: Stainless Steel Pull Handles Brand: Frelan Hardware

Description

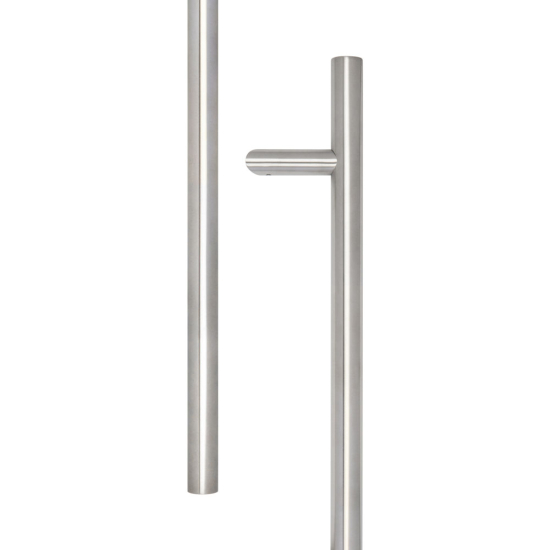

The Frelan JSS519A cranked pull handle features a robust Ø32mm tubular design with 400mm centres and a 600mm overall length. Its cranked fixing ensures extra clearance from the door surface, enhancing accessibility. Made from Grade 304 stainless steel with FD30/60 fire rating, it is built for demanding commercial use.

Residential/Commerical	Residential/Commerical
Diameter	32mm, Pillar 25mm
Bar Diameter	32mm
Projection	115mm
Handle Length	600mm
Fixings Included	M8 Fixings
PVD Finish	No
Overall Size	600 x 32mm
Internal/External	Internal / External
Material Grade	304g Stainless Steel
Range	Stainless Steel
Material	Stainless Steel
Finish	Satin Stainless Steel
Corrosion Grade	Grade 4
Fire Rating	FD30/60
Size	600x32mm
